50-TRU-VIEW-XL-DEEP – 3 Sided Electric Fireplace

Starting at $2,879.00
Add to cart

  • Description
  • Accessories
  • DOCUMENTS

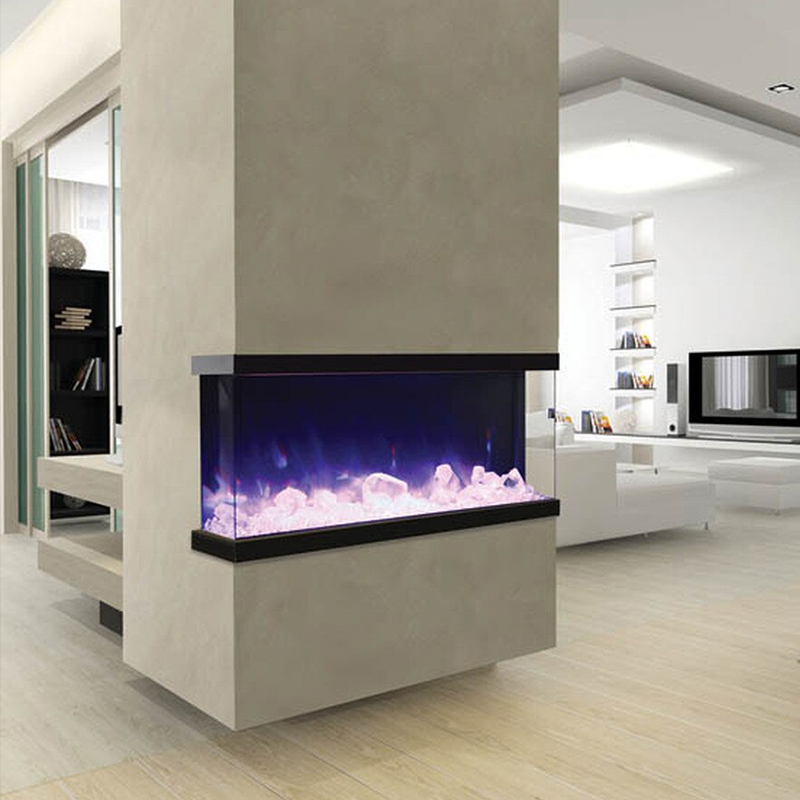

The 50-TRU-VIEW-XL-DEEP 3 sided electric fireplace is truly innovative! The gorgeous flame presentation and unique media options can now be viewed from almost any angle through 3 sides of glass viewing area.

Designed for finishing materials are to built flush to the lip for a clean face finish. Built-In only. No trim or surround included.

Perfect for any space, inside or out, including bathrooms.

The Tru-ViewXL-DEEP series work beautifully as Corner Electric Fireplace.

Boasting a depth of 14 1/4”, the TRU-VIEW-XL-DEEP features two flame sets, ambient canopy lighting in 13 colors to illuminate the decorative media like never before and our exclusive FIRE & ICE® flame presentation that allows users to choose from blue, rose, violet, yellow or orange colored flames with just the click of the remote control.

Customize the appearance of the 50-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit – Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.

4 Installation Options:

  • all 3 sides of glass visible
  • Left side visible
  • Right visible
  • front only for an extra deep (14 1/4″) fireplace

4 Installation Configurations

4 Installation Configurations

Customize the appearance of the 50-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes a Deluxe 11 piece log set, pebbles, black glass and ICE media. Further media options available for additional purchase.

Features

  • Incredible 3 sided glass viewing area
  • All models are rated for either indoor or outdoor use
  • State‐of‐the‐art FIRE & ICE ® flame set, with a click of the remote, change the flame from traditional colors such as yellow and orange to more contemporary colors like blue, purple, rose and violet.
  • Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
  • 2 Stage heater
  • Hard‐wire ready
  • Thermostat hard‐wire ready
  • Flame operates with or without heat
  • Remote control for flame and heater
  • 2 flame sets
  • Ambient canopy lighting in 13 colors illuminates media like never before

Specs

50-TRU-VIEW-XL-DEEP
Volts 120
Amps 12.5
Watts 1500 max
Heater 1500 watts high
750 watts low
No Heater 25 watts
Lamps LED 22 watts
Rotor Motor 1 at 5 watts
Height, Width, Depth 26 5/8 x 53 1/4 x 14 1/4“
Glass View Opening 15 5/8 x 49 5/8”
Surround Size N/A
Shipping Size 31 7/8” x 60 3/8” x 16 1/8”
Shipping Weight 141.5 lbs. Glass Included
Plug Location Left Side
Cord Length 70 7/8”
Approx. Heating Area 400 sq. ft.

DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of the FIRE & ICE® flame and our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.
